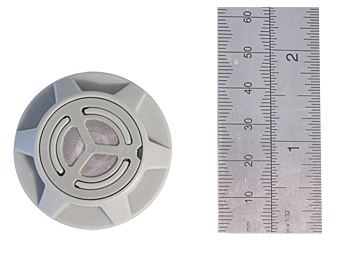

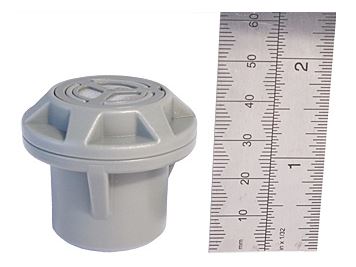

- Compact size – 46mm diameter
- Designed for use with drop stitch fabrics up to 45psi
- A wide range of pressure settings from 10 to 45 psi (see selection chart)
- Fast installation with clamp fitting – No welding or adhesive required
- Internal and external filters to stop drop stitch threads, sand and debris causing leaks
- –30ºC to +65 ºC operating temperature
- 100% tested for opening and closing pressures
- No routine maintenance required
Product Description

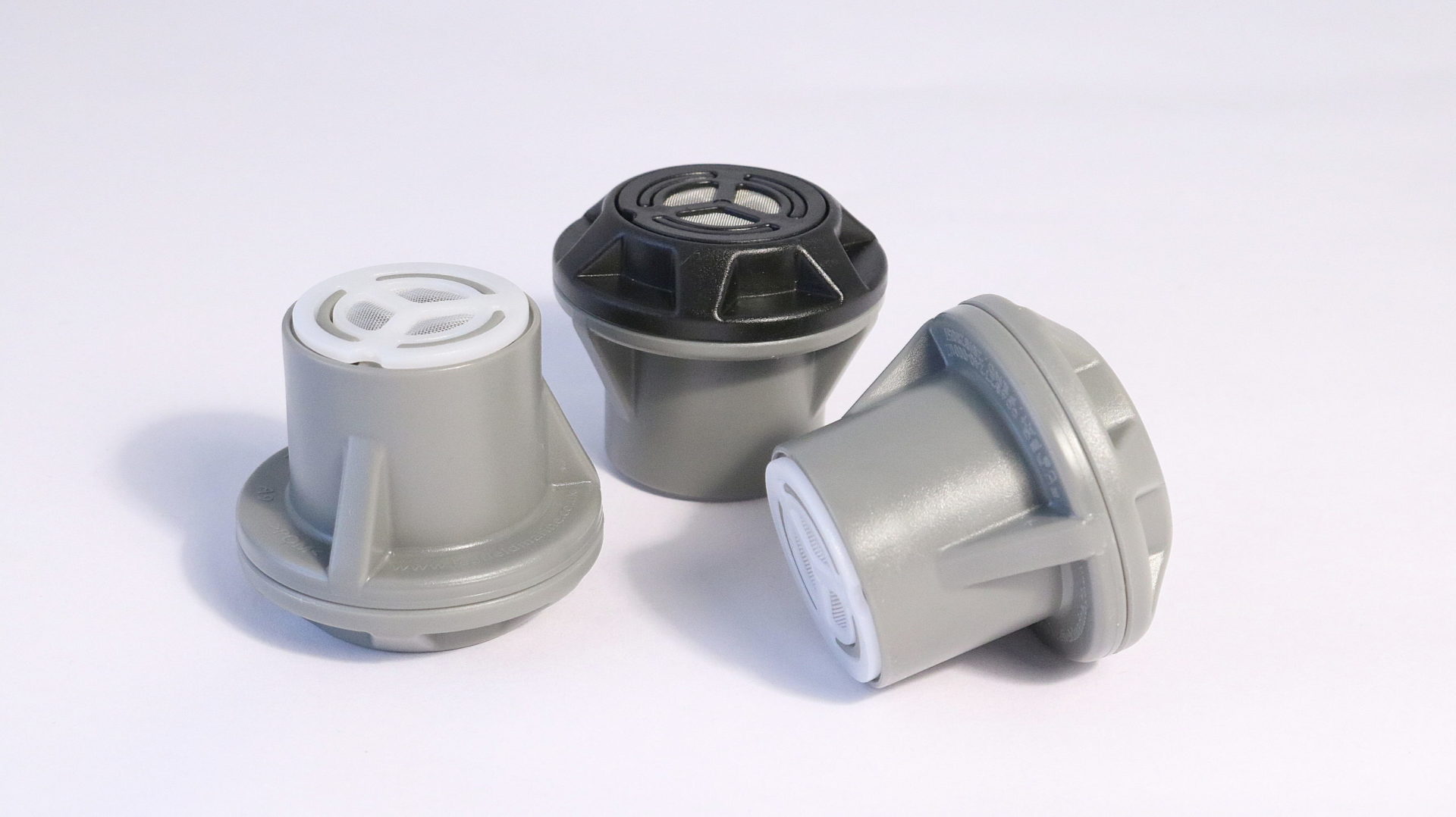

The A9 is a compact and robust Pressure Relief Valve perfect for uses where reliability and smaller size are critical. The design makes it suitable for a wide range of high-pressure applications, such as paddle boards, leisure, military or commercial inflatable boats that use drop stitch fabric.
High quality materials are used in the A9 – impact and UV resistant acetal body, stainless steel spring and silicon seal to ensure a long life in tough conditions.
It can also be used in a range of different products and fabrics e.g. inflatable tents, inflatable walls, lifting bags, and crash barriers.
For inflation/deflation valves suitable for use in similar applications, please see D7 Inflation Deflation Valve Dropstitch.
Available in Grey and Black.
Make An Enquiry
Accessories and Service Tools
D7/C7/A6/A9 Tool Kit Spanner – C166051
Small, low cost spanner for use in the field or as part of a spares kit
For use on D7, C7 valves and A6, A9 Pressure Relief Valves
Cannot be used with a torque wrench
A9 Factory Fitting Tools Nut Spanner TM 3117 Body Spanner – TM 3088 Set – TM3120
Used together with a torque wrench. This will ensure that the correct tightening torque is applied every time when installing the valve.
Avoids damaging the valve during tightening.
Please refer to A9 Installation Sheet.
