- Allows connection of separate inflatable chambers or tubes.
- Allows high flow between chambers.
- Maintenance free.
- Robust and leak tight.
- Clamps into fabric.

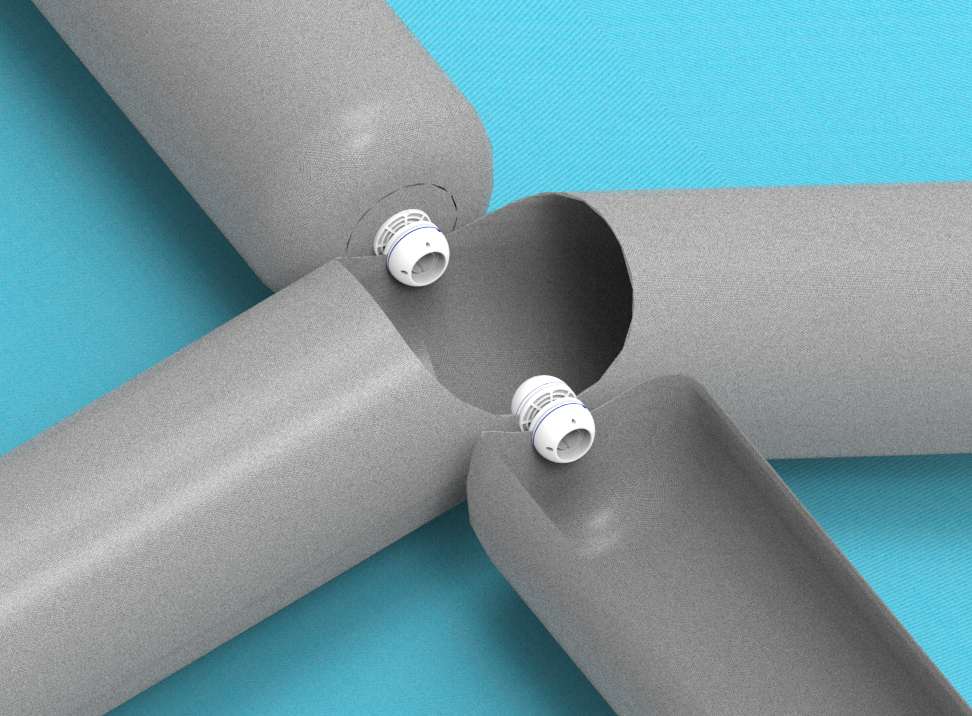

The Snap Fit Connector allows connections to be made between separate chambers, for example, on tents or boats and other modular constructions. It provides a high flow with clear 24mm diameter bore between chambers. It is suitable for use with a wide range of fabrics.

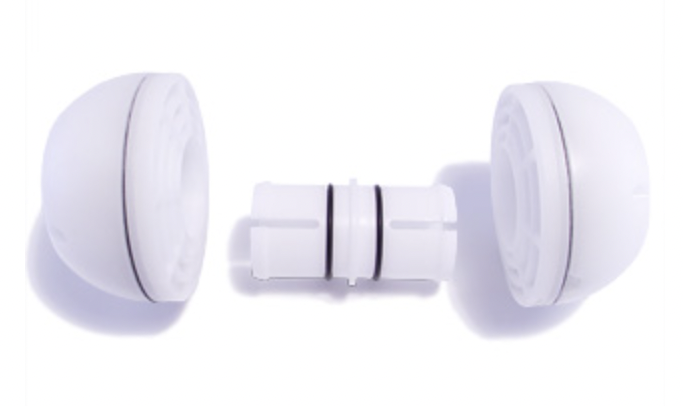

There are two different versions of these connectors: one which locks together permanently on assembly or one which can be disconnected if necessary.
Additionally, a pressure relief or non-return valve can be built into the assembly: see Non-Return Valve Snap Fit Connector Brochure or please contact us for further information.
Accessories are available to blank off chamber connections or to allow separate chambers to be inflated before they are linked.
Make An Enquiry
The above documents are in PDF format.
To view these please use Adobe Reader.
“Gemini have been using the tried and tested Leafield valves in our commercial and professional RIBS for many years and will continue to do so.“
GEMINI MARINE TEAM
“Leafield Marine’s expertise in design, manufacturing and customer service is second to none. Great support, timely deliveries and cutting-edge technology; we are proud to team up with them.“
RIVER GEAR TEAM
“I go rafting to be in the moment, so I don’t want to think about my gear. Thankfully I never have to think about my Leafield valves.“
Accessories and Service Tools
Snap Fit Pressure Relief/Non-Return Valve
Allows pressure relief/non-return function to be added to the Snap Fit Assembly.
Snap Fit Connector Factory Fitting Tool – 0901004
B10 Factory Spanner
Used together with a torque wrench. This will ensure that the correct tightening torque is applied every time when installing the valve.
Avoids damaging the valve during tightening.
Snap Fit Connector Blanking Plug
Allows the Snap Fit Connector Assembly to be sealed when disconnected from another chamber.
Can be easily removed to allow reconnection.
