- Intercommunicating valve linking adjoining tubes or chambers.
- Provides a single point inflation for all chambers of the structure.

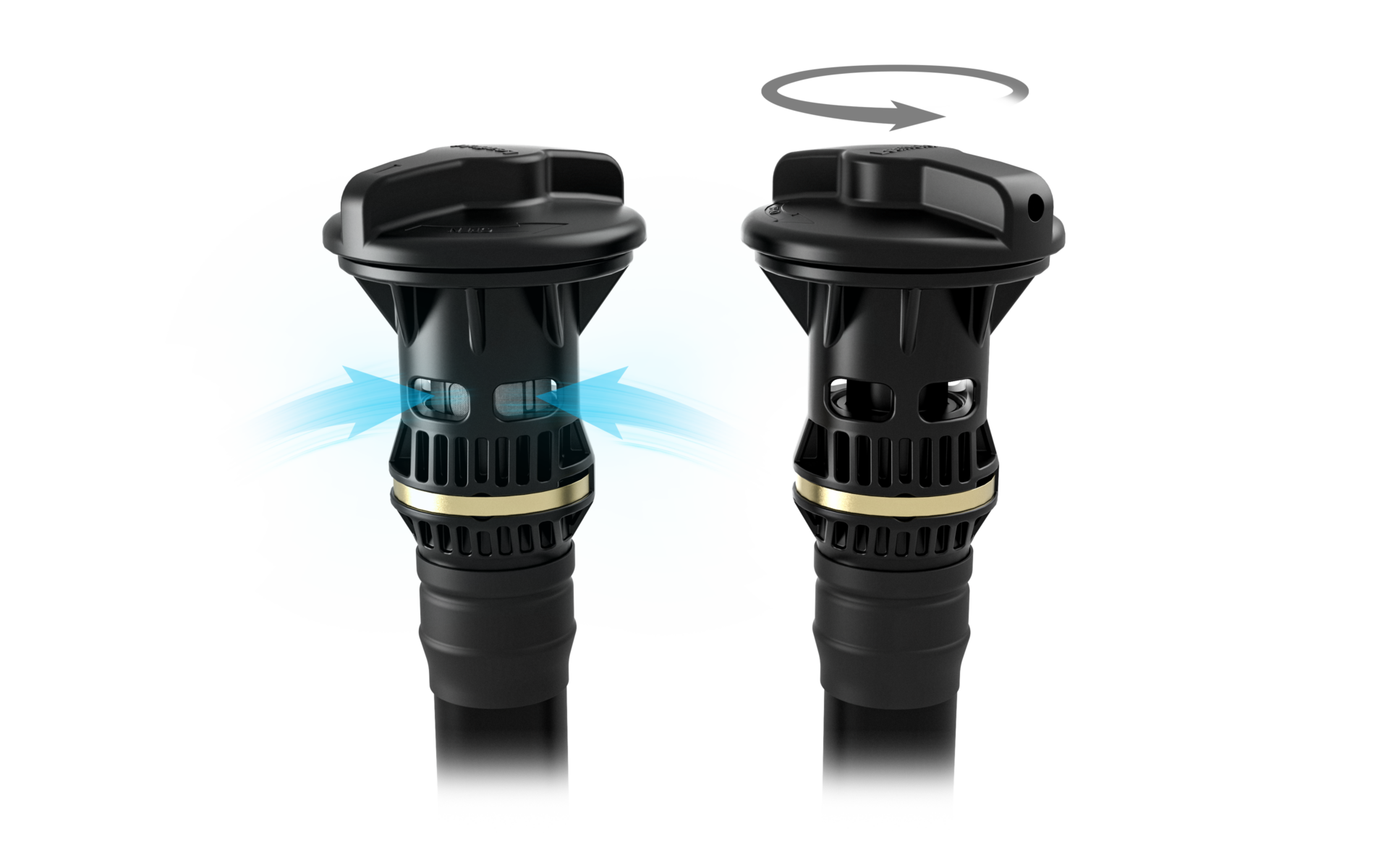

- A quarter turn, to switch from open to closed.
- High flow between chambers during inflation and deflation.
- Maintenance free.
- High tolerance to debris.
- Robust and leak tight.
- Operational temperature range of -30°c to +65°C
- Clamps into fabric of chamber and internal baffle.

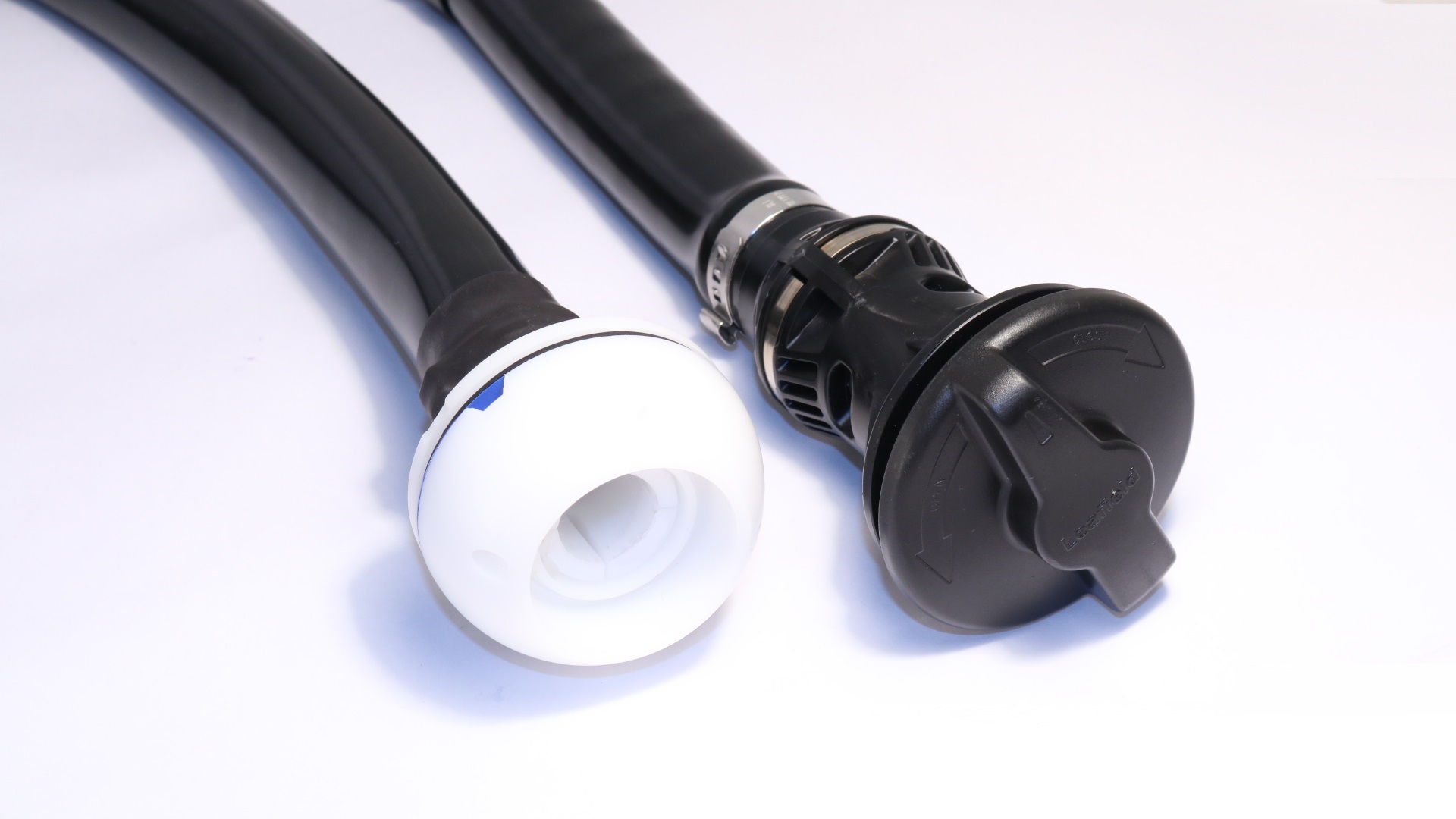

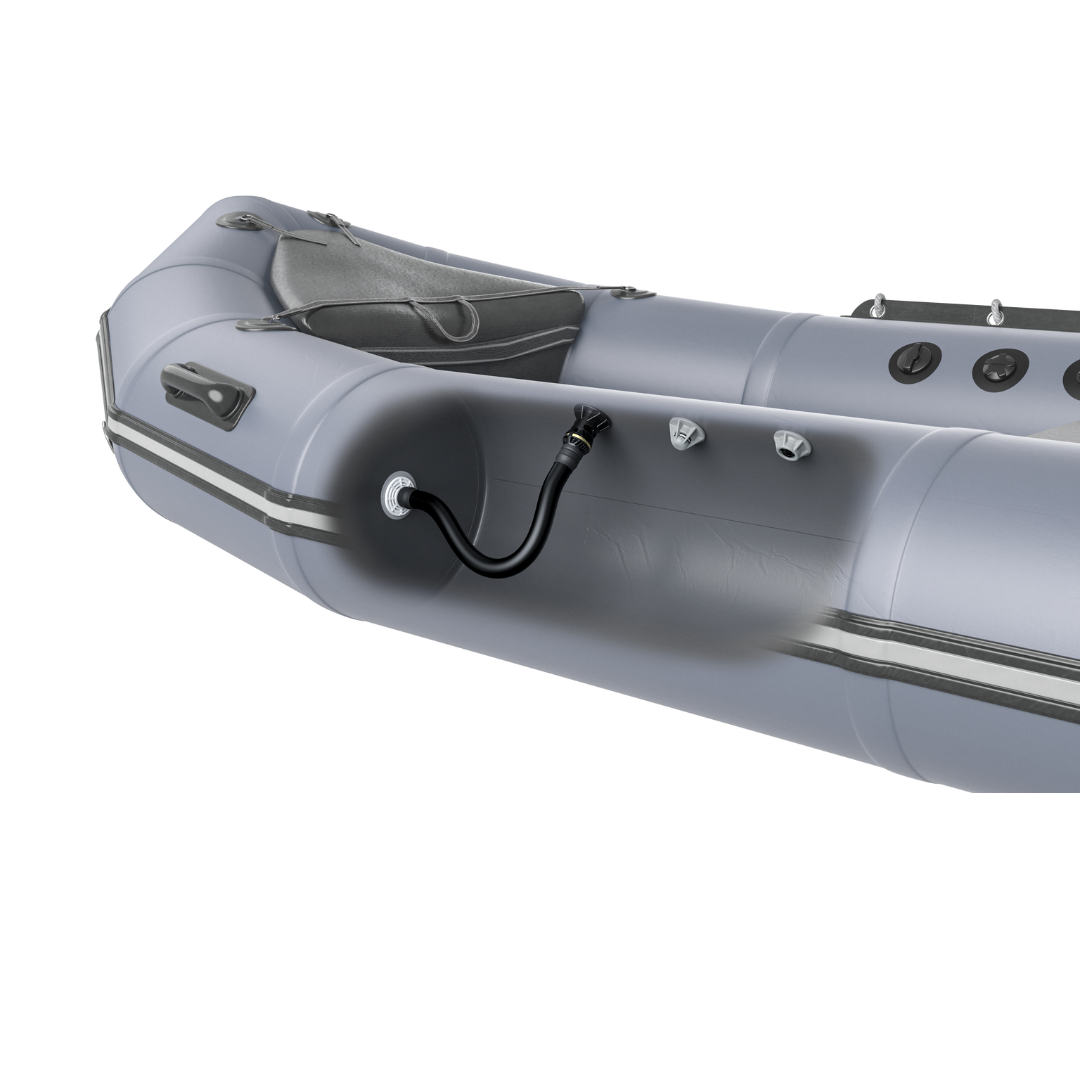

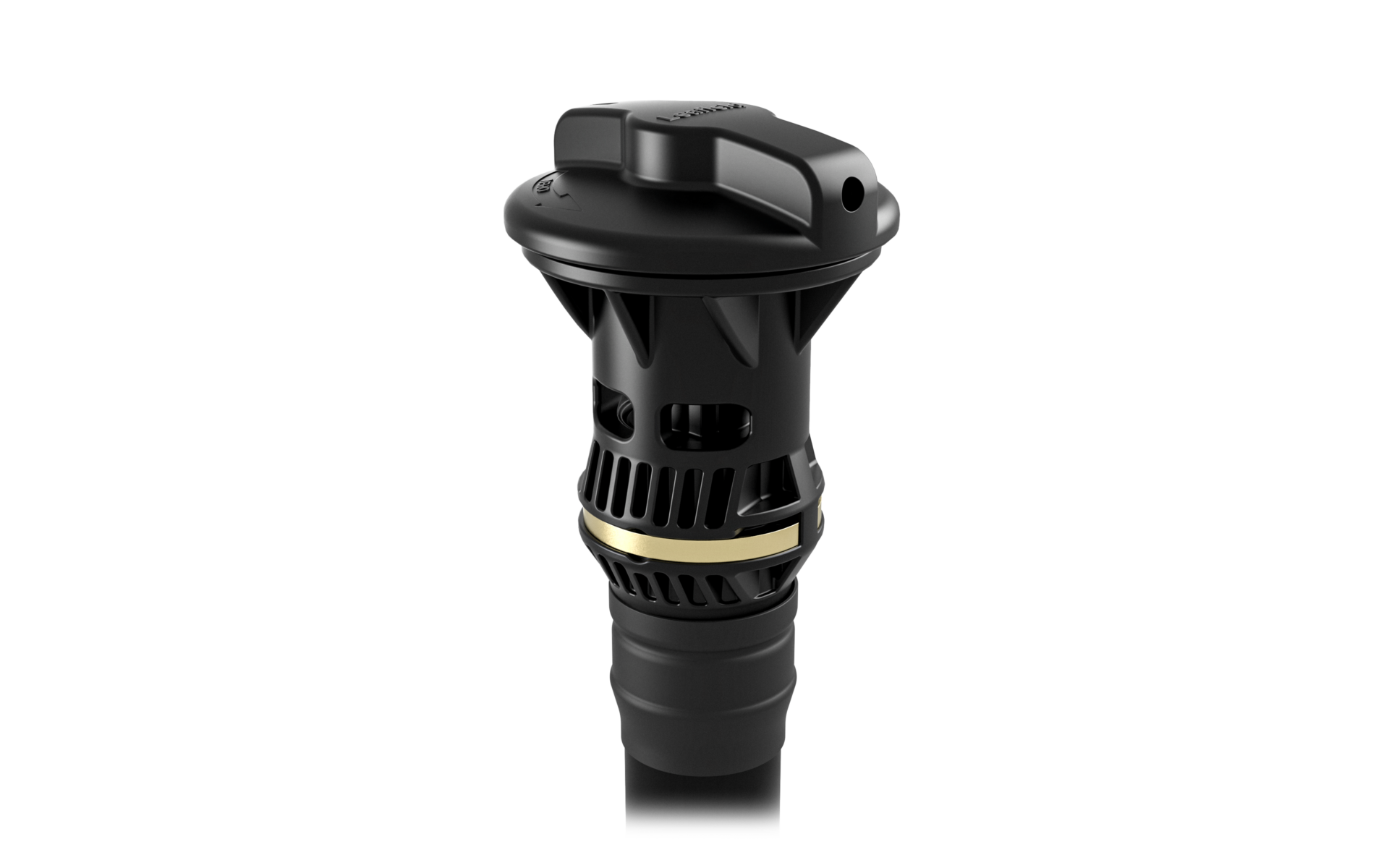

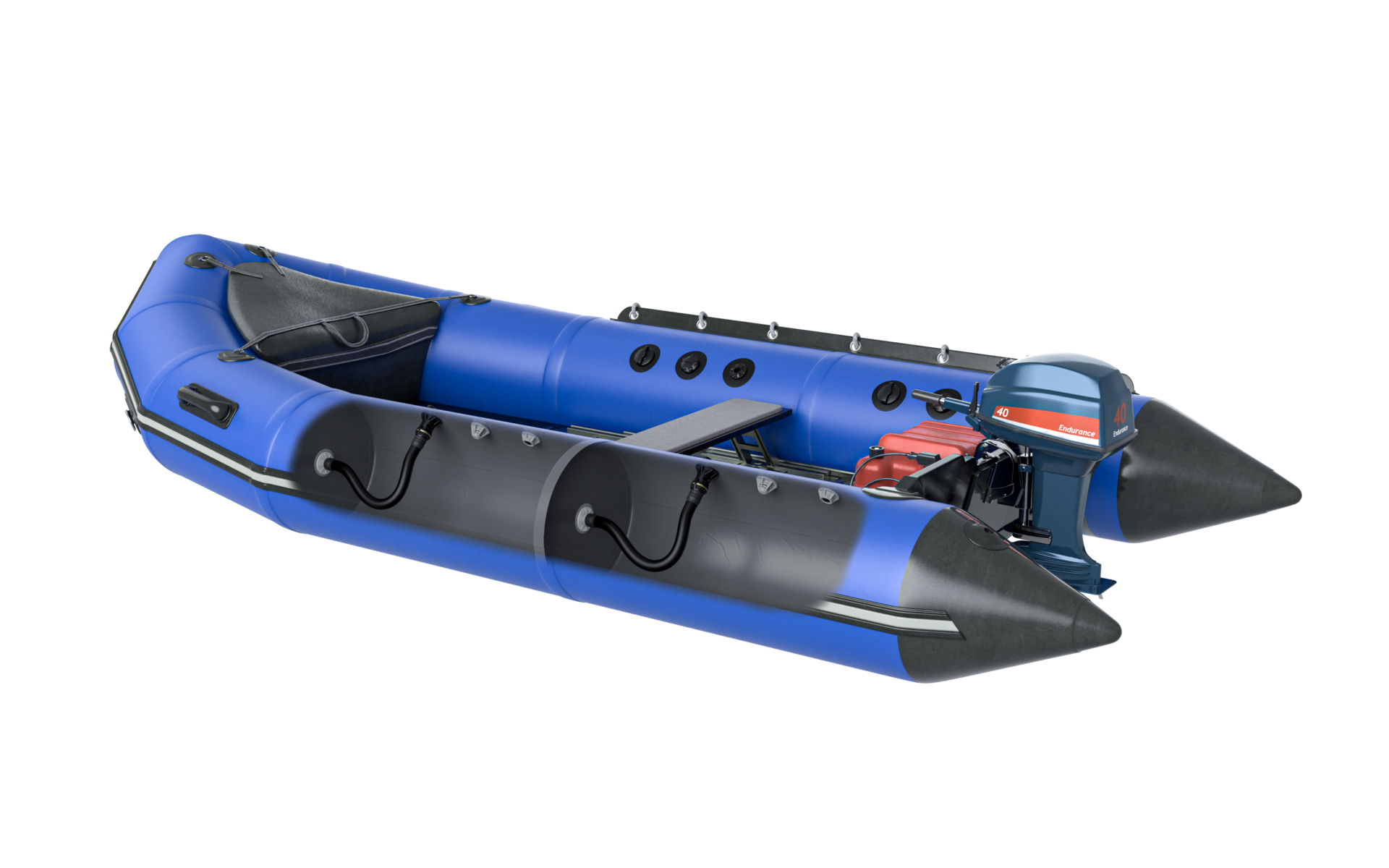

The patented Switchable Transfer Valve provides an internal link between adjoining chambers of an inflatable boat providing a single point of inflation. It can be easily opened and closed to connect the chambers by rotating a control switch.

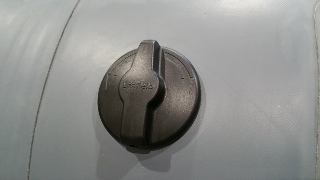

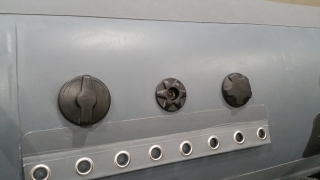

The control switch is fitted on the outside of the tube in a position to suit the user. It has markings to show if it is open or closed. Also, the user can check if the STV switch is open or closed by the shape of the cap i.e.by touch alone. The opposite end of the STV hose locates onto the internal baffle of the boat tube, using our Snap Fit Connector.
The Valve provides a high flow with a clear 24mm diameter aperture between chambers to provide rapid inflation.
Installation of the Valve is straightforward by clamping onto the fabric. It is suitable for use with a wide range of fabrics. The Valve assembly is flexible to help reduce the packed size of the deflated boat.
The valve is made from marine grade acetyl plastics and the internal switch is made from stainless steel, reducing the risk of corrosion.
There is no need for routine maintenance due to the design and the materials used.
Hose length – standard length is 700mm but for specialist projects longer hoses are available – please contact Leafield Marine for further information.
Make An Enquiry
The above documents are in PDF format.
To view these please use Adobe Reader.
“Gemini have been using the tried and tested Leafield valves in our commercial and professional RIBS for many years and will continue to do so.“
GEMINI MARINE TEAM
“Leafield Marine’s expertise in design, manufacturing and customer service is second to none. Great support, timely deliveries and cutting-edge technology; we are proud to team up with them.“
RIVER GEAR TEAM
“I go rafting to be in the moment, so I don’t want to think about my gear. Thankfully I never have to think about my Leafield valves.“
Accessories and Service Tools
Bottom Spanner – TM2737
Used to unscrew and then retighten the Switch Housing into the boat material during installation of the STV valve. Used with a torque wrench.
Clamp Block – TM3089
STV Body Clamp Block: Can be bench or floor mounted, to allow installation of the STV valve into a flat panel before the boat chambers are sealed.
C Spanner – 19379
Used to hold the STV valve at the correct orientation when securing the Switch Housing with a torque wrench.
Top Spanner – TM2582
Used to install the Snap Fit Connector onto the tube’s internal baffle. Used with a torque wrench.
Snap Fit Baffle Connector Tool – TM2747
Allows the removal of the STV Snap Fit Connector from the tube baffle.
